GSIM

GSIM Simulation Systems

The GSIM simulation and IO platform builds on Goebel’s long history in computer architecture and realtime simulation.  Target applications require robust IO expansion capabilities with high fidelity realtime performance. PCI, cPCI and VME are targeted as the IO expansion form factors. PCI is desired as the low cost high performance alternative, while VME is supported for higher power or legacy considerations.  Utilizing the latest in PCI Express bridging technology provides a high performance link to PCIe, PCI-X and PCI. VME expansion is provided through time tested PCI to VME bridges.

GSIM 16 core

  1. >16 core, 2*8 core @ 2.3 GHz, 2*12 MB cache

  2. >16 - 128 GB DDR3 1333 memory

  3. >2 PCI, 1 PCIe-X16, 2 PCIe-X8, 1 PCIe-X4 main chassis IO.

  4. >ECC memory

  5. >4U Rackmount chassis

  6. >Rackmount or up to 4 desktop displays

  7. >Dual high speed removable drives.

AVIONICS TEST
SOLUTIONS

Software

  1. >Real Time Linux

  2. >Goebelyzer bus analyzer and Gtools

  3. >Windows virtual machines

  4. >Avionics Driver Paradigm

  5. >Goebel drivers for Arinc 664, ASCB-D, Arinc 429, CAN 2.0B, MIL-1553, P2P, RS422

  6. >Linux drivers for other vendor COTS cards

Downloads

Datasheet_GSIM.pdf

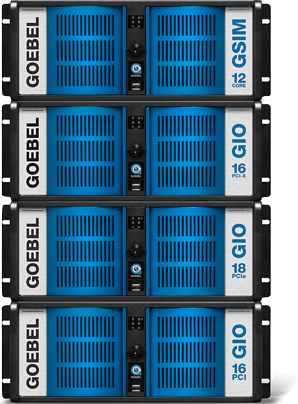

GSIM 12 core

  1. >12 core, 2 * 6 core @ 2.6 GHz, 2 * 6 MB MB cache

  2. >16 - 128 GB DDR2 800 memory

  3. >1 PCI, 2-PCI-X 4 PCIe-X8 main chassis IO.

  4. >ECC memory

  5. >4U Rackmount chassis

  6. >Rackmount or up to 4 desktop displays

  7. >Dual high speed removable drives.

GSIM 4 core

  1. >4 core, 2.66 GHz, 6 MB cache

  2. >4 GB memory

  3. >5 PCI, 2 PCIe-X8 main chassis IO.

  4. >4U Rackmount chassis

  5. >Rackmount or desktop displays

  6. >Dual high speed removable drives.

GIO expansion options

  1. >expansion chassis with 6 or 16 PCI-X slots

  2. >expansion chassis with 7 or 18 PCI express X4 slots

  3. >expansion chassis with 13 PCI slots

  4. >Up to 3 direct connected PCI expansion chassis

  5. >Additional PCI expansion chassis via PCI express switches

  6. >Up to 3 VME chassis via PCI to VME bridge
